Product Introduction

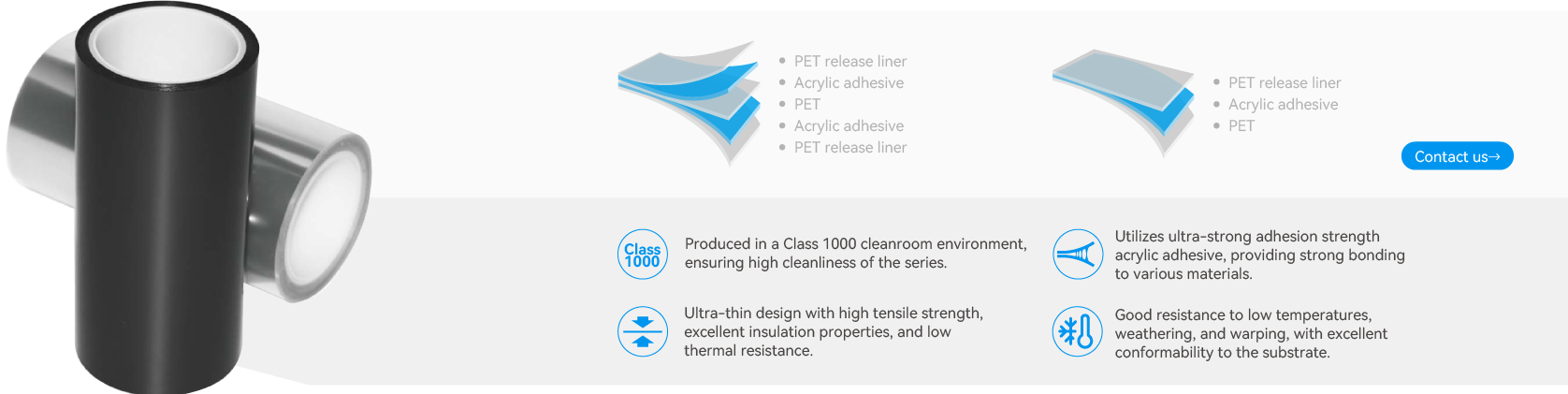

This series is an industrial adhesive tape made with ultra-thin PET as the carrier, double-sided/single-sided uniformly coated with acrylic ester-based polymer adhesive, and laminated with a release film. It is primarily used for bonding graphite heat dissipation sheets in the smartphone industry.
Typical Applications

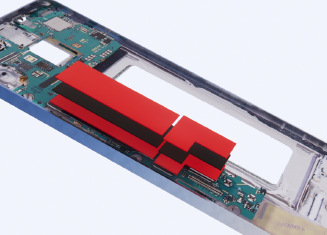

Graphite Heat Spreader Protection

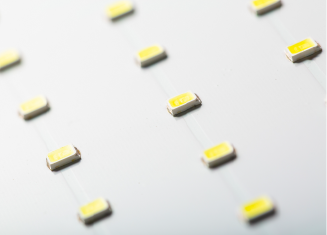

LED Heat Spreader Bonding

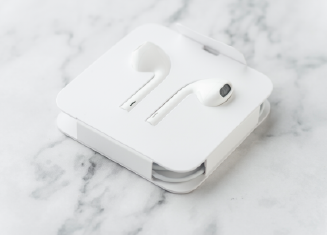

Headphone Cable Bonding
Laptop Heat Spreader Bonding
Recommended Models
Series | Grade Name | Thickness | Color | Tack | Adhesion Strength | Holding Power |
|---|---|---|---|---|---|---|
ST Single-sided Adhesive | ST3600 | 6±1 | Transparent | >180 | ≥300 | ≥24 |
ST Single-sided Adhesive | ST36006F2 | 6±2 | Matte Black | >180 | ≥350 | ≥24 |
ST Single-sided Adhesive | ST3601F | 10±1 | Matte Black | >180 | ≥500 | ≥24 |
ST Single-sided Adhesive | ST3602F3 | 20±2 | Matte Black | >180 | ≥700 | ≥24 |
ST Single-sided Adhesive | ST3603F8 | 30±3 | Matte Black | >180 | ≥1000 | ≥24 |
ST Single-sided Adhesive | ST3605F1 | 50±5 | Matte Black | >180 | ≥1000 | ≥24 |
ST Single-sided Adhesive | ST3601SB | 10±1 | Black Translucent | >180 | ≥500 | ≥24 |
ST Single-sided Adhesive | ST3602SB | 20±2 | Black Translucent | >180 | ≥600 | ≥24 |
ST Single-sided Adhesive | ST3603B2 | 30±3 | Black | >180 | ≥500 | ≥24 |
ST Single-sided Adhesive | ST3602FJ | 20±2 | Matte Black(PI) | >180 | ≥500 | ≥24 |
ST Single-sided Adhesive | ST3603FJ | 30±3 | Matte Black(PI) | >180 | ≥800 | ≥24 |
ST Single-sided Adhesive | ST3604FJ | 40±4 | Matte Black(PI) | >180 | ≥1200 | ≥24 |
ST Single-sided Adhesive | ST36048FJ | 48±4 | Matte Black(PI) | >180 | ≥1200 | ≥24 |
ST Single-sided Adhesive | ST3605FJ2 | 50±5 | Matte Black(PI) | >180 | ≥1200 | ≥24 |
ST Single-sided Adhesive | ST7601 | 10±2 | Transparent | >180 | ≥600 | ≥24 |
ST Single-sided Adhesive | ST7602 | 20±2 | Transparent | >180 | ≥600 | ≥24 |
ST Single-sided Adhesive | ST7603 | 30±3 | Transparent | >180 | ≥800 | ≥24 |
ST Single-sided Adhesive | ST7603F | 30±3 | Matte Black | >180 | ≥800 | ≥24 |
ST Single-sided Adhesive | ST7603W | 3 | White | >180 | ≥800 | 24 |
ST Single-sided Adhesive | ST7605B | 50±5 | Black | >180 | ≥1500 | ≥24 |
ST Single-sided Adhesive | ST7605B | 50±3 | Black | >180 | ≥1200 | ≥24 |
DT Double-sided Adhesive | DT3200 | 6±1 | Transparent | >180 | ≥600 | ≥24 |
DT Double-sided Adhesive | DT3201 | 10±1 | Transparent | >1 80 | ≥1000 | ≥24 |
DT Double-sided Adhesive | DT3202 | 20 ±2 | Transparent | >180 | ≥1200 | ≥24 |
DT Double-sided Adhesive | DT3203 | 30±3 | Transparent | >180 | ≥1300 | ≥24 |
DT Double-sided Adhesive | DT3201B | 15±2 | Black Translucent | >180 | Low Adhesion Side:≥700 | ≥18 |
DT Double-sided Adhesive | DT32012SW | 12±1 | White | >180 | Low Adhesion Side:≥700 | ≥18 |
DT Double-sided Adhesive | DT3202W | 20±2 | White | >180 | 1200 | ≥24 |
DT Double-sided Adhesive | DT3205W1 | 50±5 | White | 80 | ≥1500 | 24 |
DT Double-sided Adhesive | DT7600 | 7±1 | Transparent | >180 | ≥600 | ≥24 |
DT Double-sided Adhesive | DT7601 | 10±1 | Transparent | >180 | >1000 | ≥24 |
DT Double-sided Adhesive | DT7602 | 20±2 | Transparent | >180 | ≥1200 | ≥24 |
DT Double-sided Adhesive | DT7603 | 30 ±3 | Transparent | >180 | ≥1300 | 24 |
DT Double-sided Adhesive | DT7604 | 40±3 | Transparent | >180 | ≥1400 | ≥24 |
DT Double-sided Adhesive | DT7605 | 50±4 | Transparent | >180 | ≥1500 | z24 |
DT Double-sided Adhesive | DT7608 | 80±5 | Transparent | >180 | ≥1800 | ≥24 |
DT Double-sided Adhesive | DT7610 | 100±8 | Transparent | >180 | ≥2500 | ≥24 |
DT Double-sided Adhesive | DT7601SB2 | 10+2/-1 | Black Translucent | >180 | ≥800 | ≥24 |
DT Double-sided Adhesive | DT7602SB | 20±2 | Black Translucent | >180 | ≥1250 | ≥24 |
DT Double-sided Adhesive | DT7603B | 30±3 | Black | >180 | ≥1300 | =24 |
