Product Introduction

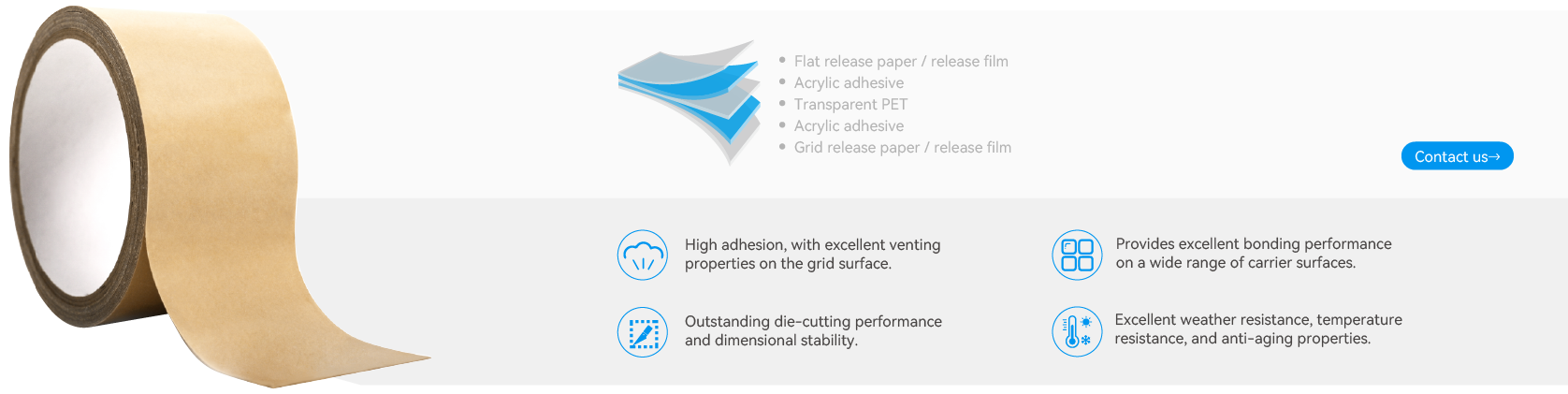

This is a double-sided adhesive tape made with a PET carrier, coated with acrylic pressure-sensitive adhesive on both sides, and one side is laminated with a grid release paper/film.

Typical Applications

Used for the fixation and bonding of cushioning foams, etc.

Laptop Mouse Mounting

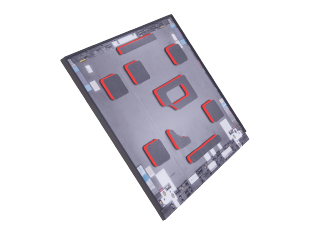

Cushion Foam Mounting

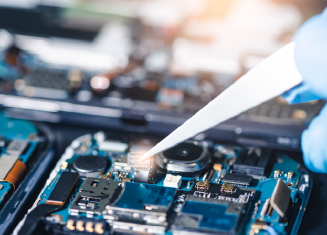

Bonding of Smooth Internal Electronic Components

Recommended Models

Grade Name

Color

Thickness
(μm)

Carrier

Adhesive

Release Liner

180°Peel Strength
(N/24mm)

CRT-DT010CG

Transparent

10

Transparent PET

Acrylic

Transparent PET Release Film + Transparent PET Grid Release Film

≥ 5

CRT-DT015CG

Transparent

15

Transparent PET

Acrylic

Transparent PET Release Film + Transparent PET Grid Release Film

≥ 6

CRT-DT030CG

Transparent

30

Transparent PET

Acrylic

Transparent PET Release Film + Transparent PET Grid Release Film

≥8

CRT-DP050CG

Transparent

50

Transparent PET

Acrylic

White Release Paper + Yellow Grid Release Paper

≥7

CRT-DP070CG

Transparent

70

Transparent PET

Acrylic

White Release Paper + Yellow Grid Release Paper

Flat:≥10
Grid surface:≥8

CRT-DP070BG

Black

70

Black PET

Acrylic

White Release Paper + Yellow Grid Release Paper

Flat:≥10
Grid surface:≥8

CRT-DP100CG

Transparent

100

Transparent PET

Acrylic

White Release Paper + Yellow Grid Release Paper

Flat:≥15
Grid surface:≥10

CRT-DP130CG

Transparent

130

Transparent PET

Acrylic

White Release Paper + Yellow Grid Release Paper

Flat:≥15
Grid surface:≥10

CRT-DP150CG

Transparent

150

Transparent PET

Acrylic

White Release Paper + Yellow Grid Release Paper

Flat:≥20
Grid surface:≥15

CRT-DP200CG

Transparent

200

Transparent PET

Acrylic

White Release Paper + Yellow Grid Release Paper

Flat:≥25
Grid surface:≥18
