Product Introduction

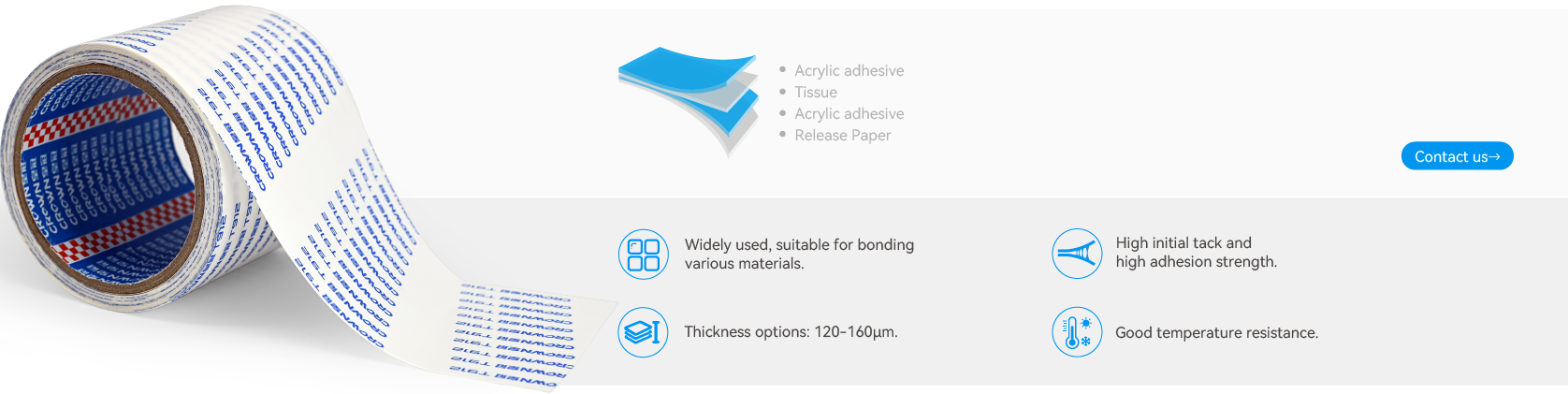

This industrial adhesive tape is made with tissue paper as the carrier, coated with acrylic adhesive on both sides, and laminated with release paper. It offers strong adhesion and holding power, excellent die-cutting capability, dimensional stability, and outstanding weather resistance.
Typical Applications
Automotive Insulation Material Bonding
Kraft Paper Adhesive

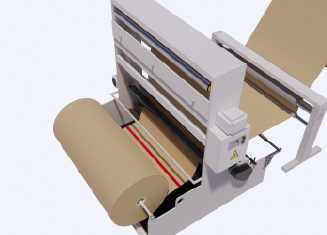

Splicing / Paper Joining Application

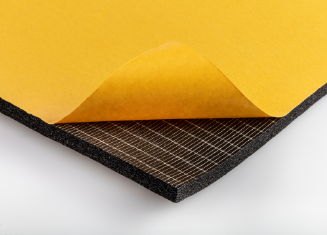

Foam Lamination

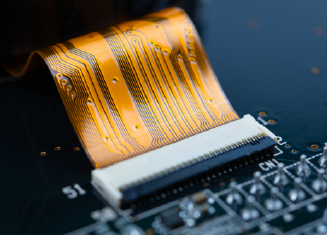

Reflow Soldering FPC Bonding

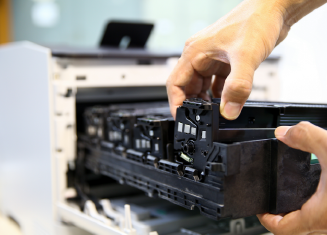

Ink Cartridge Cushion Pad Bonding
High-Temp Plastic Housing Bonding
Recommended Models
Series | Grade Name | Thickness(μ） | Specification(mm) | Series Properties |
|---|---|---|---|---|
High-Performance Tissue Tape | T912 | 120 | 1240 | Cost-effective Good adhesion to various types of boards Excellent die-cutting performance and temperature resistance Good adhesion to LSE (low surface energy) materials |
High-Performance Tissue Tape | T915 | 150 | 1240 | Excellent wettability with good bonding performance on porous materials Good adhesion to LSE (low surface energy) materials High tack, high peel strength, and stable holding power |
High-Performance Tissue Tape | T9152 | 150 | 1240 | High static shear strength (excellent holding power) Good wettability with strong adhesion to porous materials Suitable for applications at 80–100 °C Certain adhesion to LSE (low surface energy) materials |
High-Performance Tissue Tape | T9153 | 160 | 1240 | Ultra-high tack and ultra-high peel strength Excellent wettability with strong bonding performance on porous materials Certain adhesion to LSE (low surface energy) materials Good adhesion to various rough surfaces |
High-Performance Tissue Tape | T912APN | 120 | 1240 | Good temperature resistance High-adhesion side provides good bonding performance even on certain LSE (low surface energy) materials Suffix APN indicates different adhesion levels on the inner and outer sides to meet bonding requirements for different materials |
High-Performance Tissue Tape | TH916 | 160 | 1240 | Good temperature resistance: long-term resistance up to 120 °C; maximum up to 150 °C Good dynamic shear strength Good tack performance Good adhesion to certain LSE (low surface energy) materials |
High-Performance Tissue Tape | T914APN | 140 | 1240 | High tack Good conformability Excellent rebound resistance Adhesion to low surface energy materials |
High-Performance Tissue Tape | T914NS | 140 | 1240 | Good tack High tissue strength High temperature resistance Removable without residue |
High-Performance Tissue Tape | T914NS | 140 | 1240 | Made with high-strength, durable tissue that resists tearing Uses a low-residue adhesive, easy for die-cutting Good tack for excellent surface wetting of substrates Strong holding power with durability and good temperature resistance |
High-Performance Tissue Tape | T805G | 50 | 1020 | Acrylic adhesive with excellent temperature resistance up to 260 °C Maintains high adhesion strength even after reflow soldering Release liner material is easy to peel after reflow soldering Ultra-thin nonwoven fabric carrier prevents adhesive bleed during die-cutting |
High-Performance Tissue Tape | T807G | 75 | 1020 | Acrylic adhesive with excellent temperature resistance up to 260 °C Maintains high adhesion strength even after reflow soldering Release liner is easy to peel after reflow soldering Ultra-thin nonwoven fabric carrier prevents adhesive overflow during die-cutting |
High-Performance Tissue Tape | T810G | 100 | 1020 | Acrylic adhesive with excellent temperature resistance up to 260 °C Retains high adhesion strength even after reflow soldering Release liner peels off easily after reflow soldering Ultra-thin nonwoven fabric carrier prevents adhesive bleed during die-cutting |
High-Performance Tissue Tape | T816G | 160 | 1020 | Acrylic adhesive with excellent temperature resistance up to 260 °C Maintains high adhesion strength even after reflow soldering Release liner is easy to peel after reflow soldering Ultra-thin nonwoven fabric carrier prevents adhesive overflow during die-cutting |
