Product Introduction

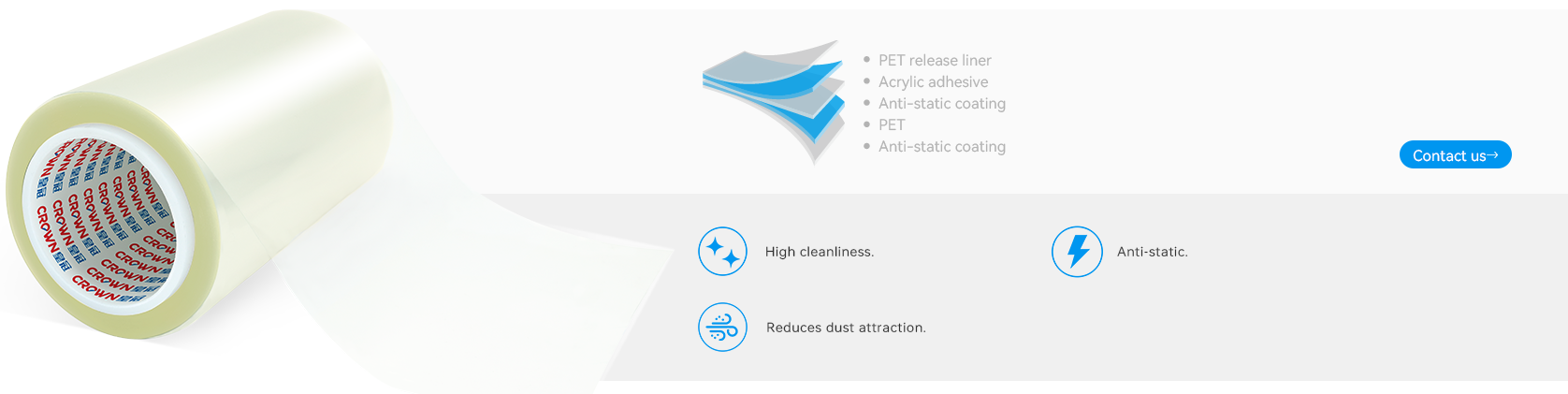

This product is a double-layer protective film made of PET as the substrate, coated on one side with acrylic pressure-sensitive adhesive (with either the substrate or adhesive treated for anti-static properties), and laminated with a release liner or anti-static release liner.
Typical Applications

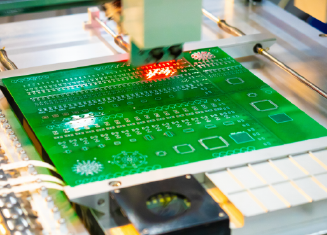

PCB process protection
Die-cutting waste removal
Recommended Models
Grade Name | Color | Carrier Thickness | Thickness | Release Liner | Peel Force | Anti-static properties |
|---|---|---|---|---|---|---|
EW2070-LLL | Transparent | 75 | 85±5 | 25μPET | 1-3 | 10⁶-11¹ |
EW5051-LL | Transparent | 50 | 60±5 | 50μPET | 3-6 | 10⁶-11 |
EW5050-L | Transparent | 50 | 60±5 | 50μPET | 6-12 | 10⁶-11¹ |
EW5051-M | Transparent | 50 | 60±5 | 50μPET | 12-19 | 10⁶-11¹ |
EW5071L-H | Blue | 75 | 85±5 | 50μPET | 19-30 | 10⁶-11¹ |
CW5071R-H3 | 中国红 | 75 | 85±5 | 50μPET | 30-50 | 10⁶-111 |
