Product Introduction

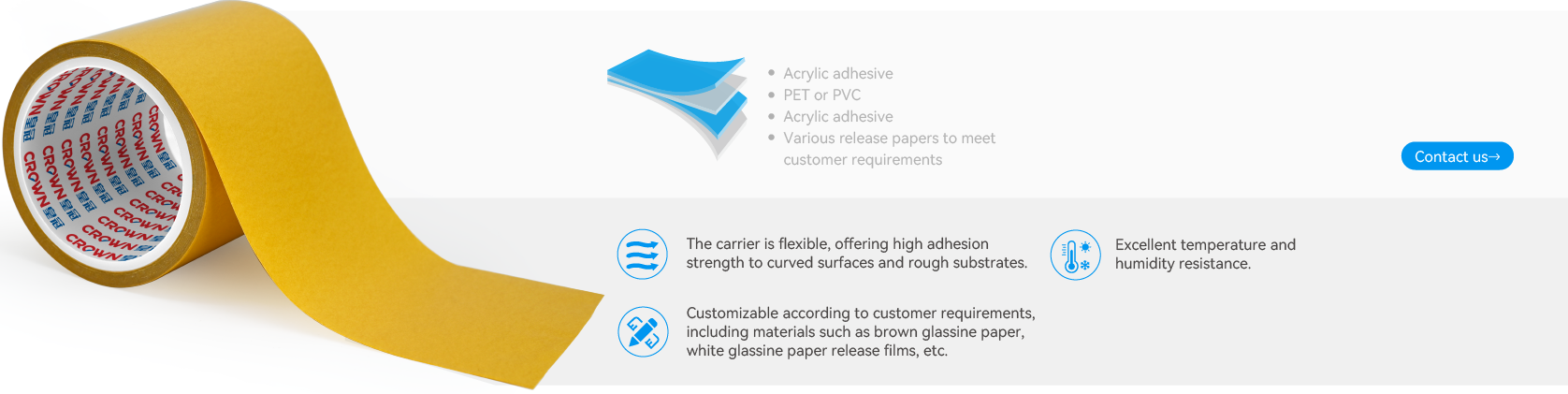

This series is an industrial adhesive tape with a PET or PVC carrier, double-sidedly coated with acrylic polymer adhesive, and laminated with release paper or release film. Available in a range of thicknesses from 30 µm to 325 µm, it is primarily used in the digital electronics industry for bonding signage, LCD backlighting, LCD panels, and metal frames in various device components.
Typical Applications
LED Strip Mounting
Lens Bonding
Screen Cushion Pad Bonding

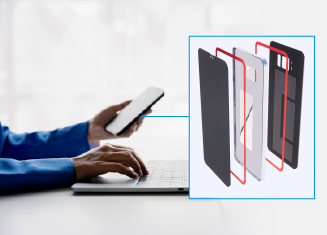

Phone Frame Bonding
Recommended Models
Series | Grade Name | Thickness | Color | Tack | Adhesion Strength | Holding Power | Temperature Resistance |
|---|---|---|---|---|---|---|---|
79(G)Series | 7983(G) | 30±5 | Transparent | ≤150 | ≥7 | ≥24 | 120 |
79(G)Series | 7972(G) | 50±5 | Transparent | ≤150 | ≥8 | ≥24 | 120 |
79(G)Series | 7980(G) | 80±5 | Transparent | ≤120 | ≥10 | ≥24 | 120 |
79(G)Series | 7982(G) | 100±5 | Transparent | ≤100 | ≥12 | ≥24 | 120 |
79(G)Series | 7928(G) | 125±5 | Transparent | ≤100 | ≥14 | ≥24 | 120 |
79(G)Series | 7929(G) | 140±5 | Transparent | ≤100 | ≥15 | ≥24 | 120 |
79(G)Series | 7967(G) | 160±5 | Transparent | ≤100 | ≥15 | ≥24 | 120 |
79(G)Series | 7965(G) | 205±5 | Transparent | ≤100 | ≥17 | ≥24 | 120 |
79(G)Series | 7926(G) | 245±5 | Transparent | ≤100 | ≥18 | ≥24 | 120 |
79 Red Film Series | 7980M | 80±5 | Transparent | ≤120 | ≥10 | =24 | 120 |
79 Red Film Series | 7982M | 100±5 | Transparent | ≤100 | ≥12 | ≥24 | 120 |
79 Red Film Series | 7967M | 160±5 | Transparent | ≤100 | ≥15 | ≥24 | 120 |
79 Red Film Series | 7965M | 205±5 | Transparent | ≤100 | ≥17 | ≥24 | 120 |
79 Red Film Series | 7965/A | 205±5 | Transparent | ≤100 | ≥18 | ≥24 | 60 |
69LSeries | 6972L | 50±5 | Transparent | ≤180 | ≥9 | ≥24 | 80 |
69LSeries | 6980L | 80±5 | Transparent | ≤180 | ≥11 | ≥24 | 80 |
69LSeries | 6972LE | 50±5 | Transparent | ≥180 | ≥8 | ≥24 | 80 |
78BT(G)/79TB(G)Series | 7880BT(G) | 80±5 | Black | ≤120 | ≥9 | ≥24 | 120 |
78BT(G)/79TB(G)Series | 7882BT(G) | 100±5 | Black | ≤100 | ≥11 | ≥24 | 120 |
78BT(G)/79TB(G)Series | 7828BT(G) | 125±5 | Black | ≤100 | ≥13 | =24 | 120 |
78BT(G)/79TB(G)Series | 7829BT(G) | 140±5 | Black | ≤100 | ≥14 | ≥24 | 120 |
78BT(G)/79TB(G)Series | 7867BT(G) | 160±5 | Black | ≤100 | =14 | ≥24 | 120 |
78BT(G)/79TB(G)Series | 7865BT(G) | 205±5 | Black | ≤100 | ≥16 | ≥24 | 120 |
78BT(G)/79TB(G)Series | 7983TB(G) | 30±5 | Black | ≤150 | ≥6 | ≥24 | 120 |
78BT(G)/79TB(G)Series | 7972TB(G) | 50±5 | Black | ≤150 | ≥7 | ≥24 | 120 |
